Ruggedized tactical

LIGHTER – TOUGHER – HIGHER DENSITY – LOWER POWER

Azbell built the first tactical VTC deployed in a battle-space for the US Army in 1995. Our lines of ruggedized and secure COTS tactical conversions have been some of the most widely used and sought after transit case based systems for the US Military over the last 15 years. Our systems are designed for use in tactical command posts, homeland security, first responders, humanitarian support and disaster relief, and harsh environment industrial conditions.

Because we stay ahead of the approved hardware and the underlying computing, communication, power and battery technologies, you can be assured that an Azbell design will be lighter and tougher, more efficient in power consumption, have a higher reliability and usability and the highest density of C2/3/4 capability available in the smallest footprint.

Ruggedized Tactical Gear image

COMMAND CENTER SYSTEM NEXT GENERATION (CCS-NG)

Azbell Electronics is now accepting orders for the Command Center System Next Generation (CCS-NG). This is a COTS item that has the same size, weight, form, and function as the Army’s current system of record but with a seven year refresh of the technologies used to support the war fighter. The CCS-NG has the latest version of the Jupiter System VIzionPlus II configured to accept the same number of computer inputs (8) and drive the same output display wall with up to 4 devices. Moreover, these inputs and outputs support both analog and digital display devices allowing for in-system conversion of these signals. Optionally available are interfaces to PixelNet that future proof the CCS-NG from the emerging technology of virtualized video wall processing. Included is an updated version of the Cisco 3560 series Ethernet switch with the option of either 24 or 48 user-side ports and optional 10Gbps uplinks.

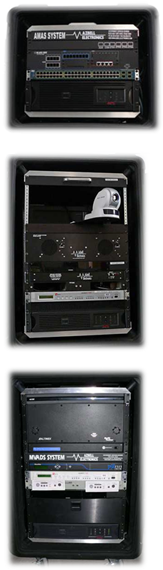

MVADS© / AMAS

Tactical Service image

  • Inbound Service Support for Voice, POTS, VoIP, BRI/PRI, Video, VTC (H.323), Streaming Video, Data, Internet/NIPRNET
  • Supported World-Wide Voice Interfaces for Globalstar and Iridium
  • Supported ENCRIPTION Interfaces: NSA Type1, Serial, Ethernet
  • Supports Wireless 802.11 A/G and Bridging

MVADS© TACTICAL / VTC

  • Choice of network: IP up to 2 Mbps, ISDN up to 512 kbps with embedded encryption AES-DES
  • Superior video quality incorporating the H.264 standard and true CD-quality audio
  • Protection against network interruptions
  • Multi-site functionality with rate matching
  • Built-in Camera, microphone, and audio system
  • Rack, Case, or Shelter Mounted

MVADS© TACTICAL / AUDIO VIDEO CONTROL

  • Choice of network: IP up to 2 Mbps, ISDN up to 512 kbps with embedded encryption AES-DES
  • Superior video quality incorporating the H.264 standard and true CD-quality audio
  • Protection against network interruptions
  • Multi-site functionality with rate matching
  • Rack, Case, or Shelter Mounted

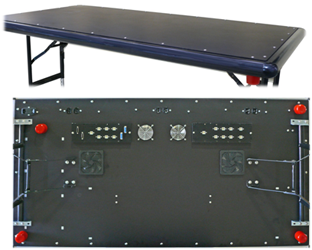

MICIS©

Tactical Command image

    MODULAR – INTEGRATED – COMMAND – INFORMATION – SYSTEM
  • Two network, isolated, EMI shielded standard config; with option for third network if needed.
  • 10 Gigabit trunk backbone for system high network.
  • 1 Gigabit trunk backbone for other networks.
  • Built in IP, VOIP – w/ support for future IP handsets.
  • Built in Video encoder with DV-I interface supporting both analog an digital inputs (VGA, DVI-A, DVI-D)
  • All components needing cert are APL listed.
  • Integrated Video Wall processing, touch control ystem (or laptop controlled), speakers.

Tables link together to scale from company to division size network needs.

  • Lightweight, extruded, aircraft aluminum frame and surfaces.
    (63lbs standard configuration).
  • All surfaces are non-reflective, slip resistant.
  • Shock mounted components. EMI shielded.
  • Integrated carry handles.
  • Stackable (Stacking standoffs shown in red)
  • Heavy duty adjustable legs.
  • Gasket sealed for any environment.
  • Covered connector plugs.
  • Integrated cooling system w/ heavy duty filtering.
  • Pallet-oriented footprint (60″l x 30″w x 5″d).
  • Broad operating temperature range (component dependent).

MVADS©

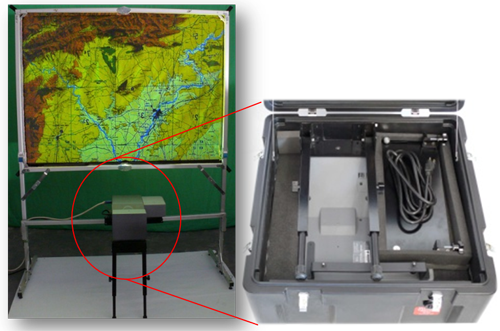

ULTRA SHORT THROW PROJECTOR KIT

Tactical Projection image

The MVADS Ultra-Short Throw Large Screen Display (LSD) projector kit includes everything needed to convert standard issue front, overhead projectors into a more convenient rear projection, floor mounted and stabilized display system. The kit includes an 80 inch, 2700 lumen, Ultra-Short Focus projector capable of displaying computer generated RGB images up to 1920 by 1080 pixels. The mounting hardware is designed to aid rapid setup and takedown when attaching to the currently fielded CHS screens. The kit includes rear-projection screen fabric which allows the projector to be placed behind the screen providing additional usable floor space. Cross-flow air cooling eliminates air flow from viewers near the projector. Transportation and storage is facilitated with a plastic injection molded transit case designed with space for all kit items with appropriate foam padding.

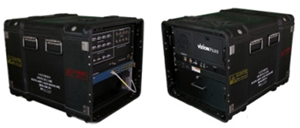

CCS© (Command Center System)

Tactical Command imageTactical Center imageBuilt under contract as part of the Command Post Project System of Record for the US Army. Over 1,000 systems have been delivered on-time and on-budget.

ONE STOP INTEGRATION SHOP

 Tactical Integration
All the work – from secure GFE or CFE inventory areas, to custom part & cable fabrication, to assembly, integration and test is done at Azbell’s 12,000sqft. facility on Fort Hood. Our unique understanding and history with transit case based systems within the US Army and our deep understanding of the information technologies employed for secure network and TOC operations, make Azbell the most cost-effective and experienced partner for leading edge tactical C2/3/4 & VTC solutions.

TACTICAL GEAR SPECIFICATIONS AND CAPABILITIES

If you have specific designs or would like SPEC SHEETS and on any of the above products please call us or fill out an email address in our form and we will email you our Tactical Equipment brochure.

SPECIALIZED PEDIGREE IN A SMALL BUSINESS PARTNER

Whether you are the end military or government customer, or a large concern looking for a small business partner with the right skill-set, experience and facility – put Azbell to work for a more cost-effective and better designed end-product
